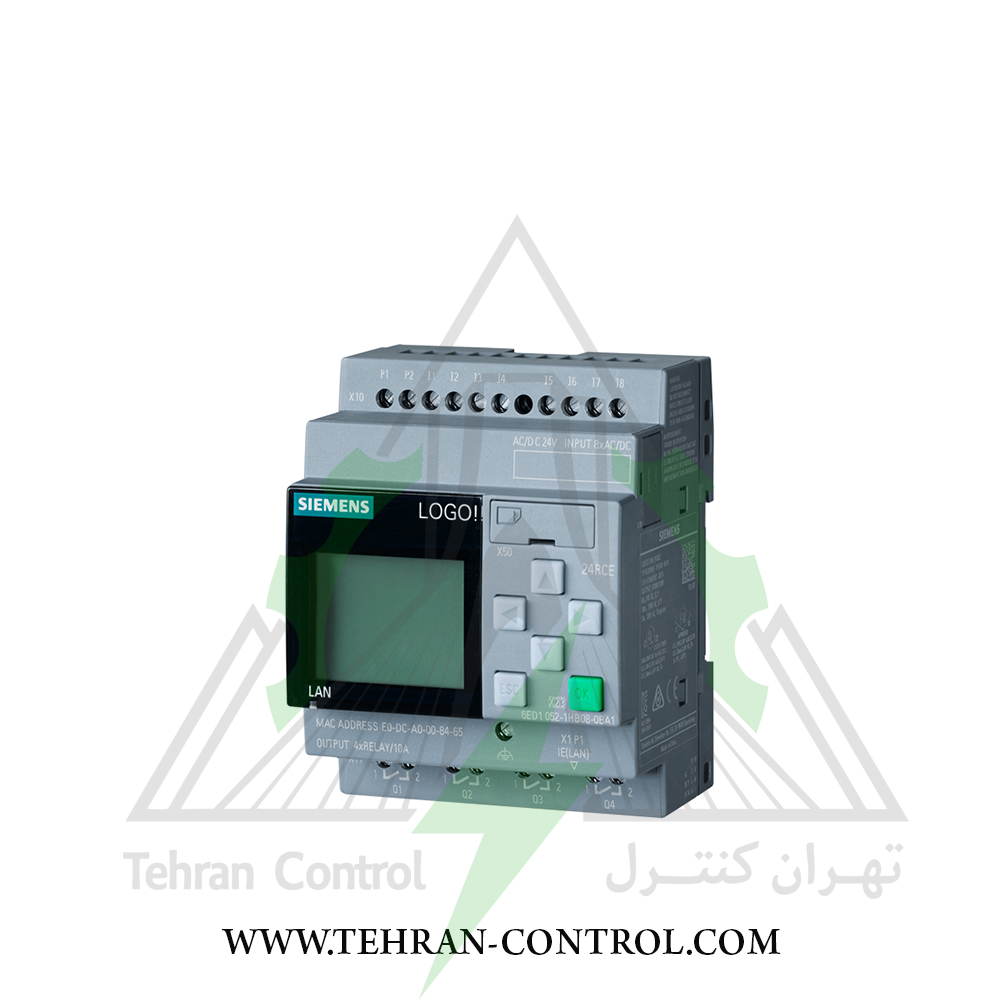

میکرو PLC لوگو زیمنس6ED1052-1HB08-0BA1
| وزن | 0.29 کیلوگرم |
|---|---|
| تعداد ورودی دیجیتال | 8 |
| تعداد خروجی دیجیتال | 4 |
| تعداد ورودی آنالوگ | 0 |
| تعداد خروجی آنالوگ | 0 |
| کشور سازنده | China |
| کاربری | پرکاربرد |
| نوع محصول | CPU |
| ولتاژ تغذیه | 24 V DC/AC |
| نوع شبکه | Ethernet |
| ابعاد کالا | Not available |
| ابعاد جعبه | 8,40 x 10,30 x 7,60 |
| وضعیت تولید | PM300:Active Product |
| سازنده | SIEMENS |
0
کاربر در حال تماشای این محصول می باشد.
| Product | ||||
| Article Number (Market Facing Number) | 6ED1052-1HB08-0BA1 | |||
| Product Description | *** spare part *** LOGO! 24RCE, logic module,display power supply / I/O: 24 V 24 V AC/DC/relay, 8 DI/4 DO, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher, older projects executable cloud connection in all LOGO! 8.3 basic units | |||
| Product family | Not available | |||
| Product Lifecycle (PLM) | PM490:Start of final year of support | |||
| PLM Effective Date | Product discontinued since: 22.04.2024 | |||
| Notes | ||||
| Successor information | ||||
| Successor | 6ED1052-1HB08-0BA2 | |||
| Successor Description | LOGO! 24RCE, logic module,display power supply / I/O: 24 V AC/24 V DC/relay, 8 DI/4 DO, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic units | |||
| Price data | ||||
| Region Specific PriceGroup / Headquarter Price Group | 200 / 200 | |||
| List Price | Show prices | |||
| Customer Price | Show prices | |||
| Surcharge for Raw Materials | None | |||
| Metal Factor | None | |||
| Delivery information | ||||
| Export Control Regulations | ECCN : 9N9999 / AL : N | |||
| Standard lead time ex-works | 1 Day/Days | |||
| Net Weight (kg) | 0,268 Kg | |||
| Packaging Dimension | 8,10 x 9,30 x 7,00 | |||
| Package size unit of measure | CM | |||
| Quantity Unit | 1 Piece | |||
| Packaging Quantity | 1 | |||
| Additional Product Information | ||||
| EAN | 4034106033705 | |||
| UPC | 195125091535 | |||
| Commodity Code | 85371091 | |||
| LKZ_FDB/ CatalogID | STLOGO! | |||
| Product Group | 4071 | |||
| Group Code | R131 | |||
| Country of origin | China | |||
| Compliance with the substance restrictions according to RoHS directive | Since: 30.09.2020 | |||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||
| REACH Art. 33 Duty to inform according to the current list of candidates |
|
|||
| SCIP number | b8711b4a-3cf0-424c-916d-460e244c09bf | |||
